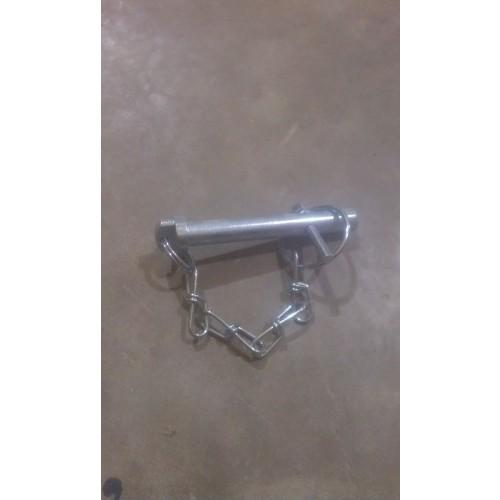

Zinc plated pin with chain and lynch pin to secure dropleg on 7K

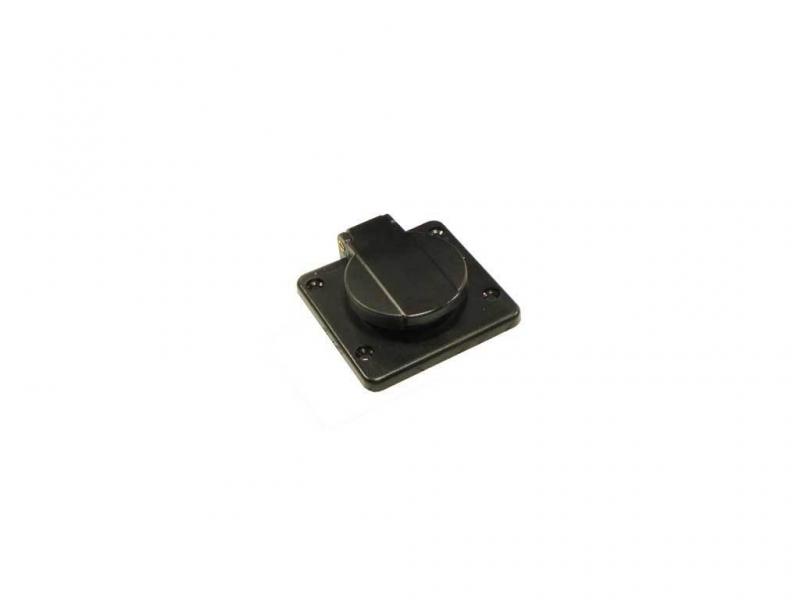

REPLACEMENT LID FOR BATTERY CHARGER

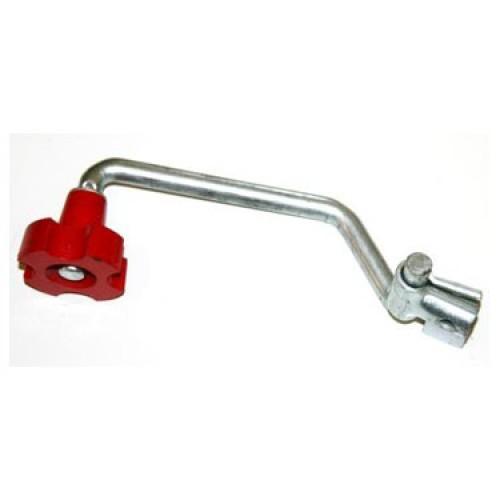

Topwind handle fits Bulldog round jacks with capacities ranging from 1,000 lbs - 5,000 lbs Designed for use with Bulldog series 150, 160 and 170 topwind jacks Crank assembly and red knob included 6-3/4" Long handle

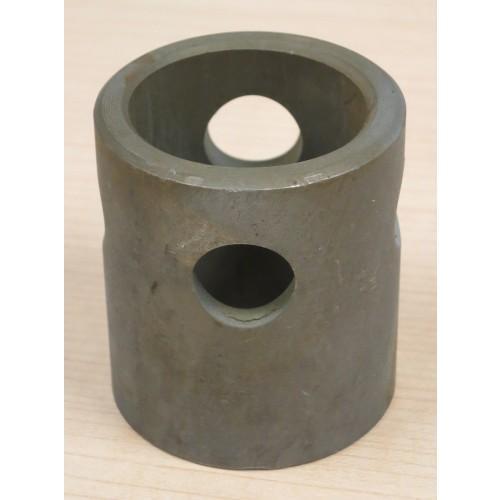

Swivel Pipe Bracket for 5K jack
2015 Connector
FORMED HINGE WITH GREASE FITTING
Slam Latch for Top-lid Toolbox Keys included
Handle, Crank for Dropleg Jack 10K

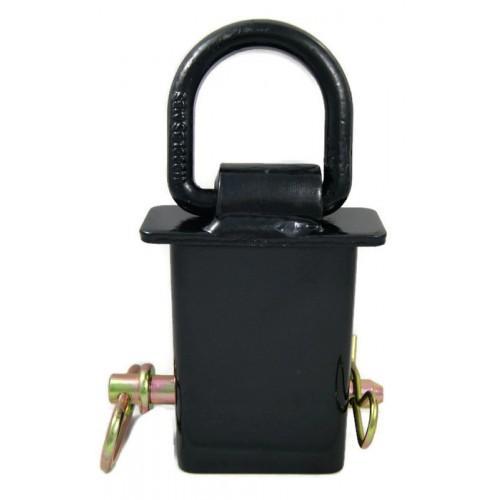

Fits PJ 3 3/4" ID Stake Pockets D-ring rated at 11,780 lbs Can be moved in seconds with no tools Black Powder Coat Finish Includes hitch pin Not for use on dump trailer stake pockets This Stake Pocket D-rings does not fit most C 4 Car haulers or Utility Trailers 5" tall from the bottom of the channel to bottom of the flange The channel is approximately 3 5/8" wide 1/2" diameter d-ring The channel depth is 1 1/2" deep 3 1/2" from bottom of flange to the top of the hole Flange length 4 3/8", flange width 1 3/4 in 1 3/4" from top of hole to the bottom of the d-ring
CHAIN ASSEMBLY WITH CLEVIS GRAB HOOK 4,700LB WLL
Formed steel channel with holes for multiple pin locations that allow you to adjust the position of the stake in the pocket Comes with 2 pins and keepers Often used to prevent pipe or other materials from rolling or sliding off the trailer Fits in stake pockets Can be lowered down out of the way when not in use 24" over all length
Channel Bracket 4-hole

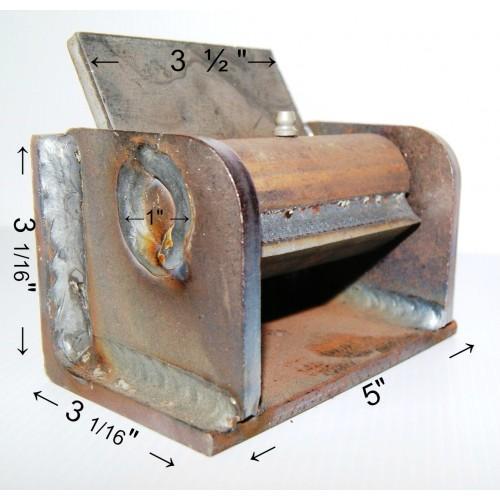

This is the hinge that is used on all PJ Trailer Dumps and Tilts. Includes grease fitting Pin is welded in Sold unpainted For dimensions see picture above
CHAIN ASSEMBLY WITH CLEVIS GRAB HOOK 6,600LB WLL
Formed steel channel with holes for multiple pin locations that allow you to adjust the position of the stake in the pocket Comes with 2 pins and keepers Often used to prevent pipe or other materials from rolling or sliding off the trailer Fits in stake pockets Can be lowered down out of the way when not in use 48" over all length
Mounting brackets are on the "bottom" opposite the posts
Channel Bracket 6-hole
Can be used for either bolt on or weld on applications Drilled Holes for Bolts This mount does not include any mounting hardware. Mounting plate is 5 1/4" x 3 1/2" 5/8" Bolt mounting holes Black powder coat finish Can be used with 1/2" or 9/16" studs (Not included)
1.5" x 1.5" square tube stabilizer leg for Dump Trailers 30" long Prevents PJ dump trailers from lifting up on the tailgate of the pickup when loading equipment Can be adjusted up all the way when not in use Black powder coat Sold by the each Does not include hitch pins. Sold individually, takes quantity 2 per trailer
Typically found on "Up" circuit of dual acting KTI Pumps.
Uses a hex nut on the top to hold the round coil down Vendor Part # LSV2-08-4CO Typically found in round coil on "Up" circuit on KTI Double acting pumps
Top-wind Jack Tounge Mount 5000lb capacity Swivel Pipe Mount This is that same jack that is commonly used as support jacks on the back of the Car Hauler and Buggy Hauler PJ Trailers. This is the standard tongue jack that is put on most U6, U7, U8, C4, and C5 PJ Trailers.
Jack, 7K Dropleg Square Topwind
This is the "built in " trickle charger that accepts 110 volt input . Receptacle passes through side of tool box. Comes with two 2 ft battery cable leads with 3/8" eyes. Comes with LED self-resetting circuit breaker Features a simple push button built in battery/alternator condition tester.
Uses a thumbwheel to hold the square coil down Vendor #LSPC-08-4 Typically used on Down circuit with square coil.
Typically found on "Down " circuit of dual acting KTI Pumps.
6 quart capacity tank sold without plug, filler cap, or o-ring Length 13" X Height 7" x Width 7" Mounting Holes 4" x 4"
Used in "gravity tilt" trailers to lock bed in upright position for loading or unloading.
This is a portable spare tire mount that fits most trailers with standard size stake pockets (3.75" ID) Can be used with 1/2" or 9/16" stud Drive-in wheel studs sold separately. This mount can be easily moved around from stake pocket to stake pocket by simply removing a bolt. 3.5" spare tire base square tubing offsets the mounting plate 7.5" from the trailer Black powder coat finish ***This mount does not fit in a dump trailer stake pocket*****
Replacement 2 Button Remote Fits Single and Double acting KTI Hydraulic Pumps.
This is the most common coupler used on PJ Trailers with a 2-5/16" bumper pull coupler Bulldog 2-5/16" Adj. height coupler Fits our 14k bumper pull trailers with channel mount on tongue Heavy duty cast head Wedge latch system Uses 2, 5/8 X 5" grade 8 bolt and lock nuts. (Not included)
3 BOLT CHANNEL MOUNT
LOAD TRAIL SPARE TIRE AND WHEEL
10k Lift Capacity Drop Leg Jack 12k Static Capacity Pull pin to the front Black powder finish Pro Series Brand Spring loaded return drop leg. Weld on application Drop leg travel of 13-1/2"
Our New wireless remote for a KTI pump This unit works with any trailer built after January 2015 Very simple and quick installation The wireless remote has a range of about 40ft with no obstructions Reciever has a built-in safety - shuts down after being idle for 20 minutes Receiver has the abilty to program up to 4 key fobs to one receiver Includes a inline 15 amp fuse on the power wire for protection 5/16" eyes are included on power and ground wires to ease installation to battery Receiver Power and Ground Wire lengths: 24" 2 Button receptacle connector wire length: 14" 2 Button power unit connector wire length: 32" Detachable antenna has a 38" wire Kit includes: (1) Main Transmitter (1) 23 AE Battery (for transmitter) (1) Main Receiver Unit (1) Detachable antenna (1) Antenna mounting screw (2) 2" by 2" velcro (1) Installation Manual
All hems are reinforced with 2\" heavy-duty nylon webbing Heavy-Duty double stitch hem Full perimeter brass grommets Built-in Pocket for Optional Rear Anti-Sail Tarp Retention Bow Sets
This is the pump will work on all Hydraulic dumps, tilts, jacks, dovetails, that are made by PJ. With the exception of our tandem dual dump(TDD) and tandem dual tilt (TD) 3 Quart Plastic Offset Reservoir 12V DC, (2) Terminal, Electric Motor 12V DC Heavy duty plastic start solenoid switch /100 amp Cartridge relief valve, Adjustable set 4W2P Spool type cartridge soleniod valve 10V DC #8 Cylindrical coil w/ Dual spade NC 2-WAY and P.O.C in 4-WAY Cartridge valve Secondary relief valve w/ side exhaust ports. Set at 1500 PSI SAE #6 (9/16-18) Plastic shipping plug Pressure loaded gear pump (0.1324 IN³/R) KTI 3/4 NPT 40 Micron air breather 2 Button 4-Wire Remote Pendant w/ Cylindrical Quick Disconnect 15' Cord Warning Label Tag, Yellow, Torgue Spec RVSAE6-30 @ 1500 PSI. Perfect replacement pump for 12VDC remotely controlled hydraulic systems Perfect for Dump Trailers - Lift Gates!! Length 16.5" x Height 8" x Width 8"
This is the pump that will work on all Hydraulic dumps, tilts, jacks, dovetails, that are made by PJ. Since @2014 the only trailers these are used in are the TDD and the TD models. In 2014 we started using the same pump with the smaller reservoir for all other applications. 6 Quart Plastic Offset Reservoir 12V DC, (2) Terminal, Electric Motor 12V DC Heavy duty plastic start solenoid switch /100 amp Cartridge relief valve, Adjustable set 4W2P Spool type cartridge soleniod valve 10V DC #8 Cylindrical coil w/ Dual spade NC 2-WAY and P.O.C in 4-WAY Cartridge valve Secondary relief valve w/ side exhaust ports. Set at 1500 PSI SAE #6 (9/16-18) Plastic shipping plug Pressure loaded gear pump (0.1324 INA³/R) KTI 3/4 NPT 40 Micron air breather 2 Button 4-Wire Remote Pendant w/ Cylindrical Quick Disconnect 15' Cord Warning Label Tag, Yellow, Torgue Spec RVSAE6-30 @ 1500 PSI. Perfect replacement pump for 12VDC remotely controlled hydraulic systems Perfect for Dump Trailers - Lift Gates!! Length 21.5" x Height 8" x Width 8"
